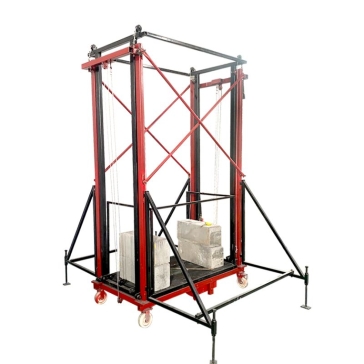

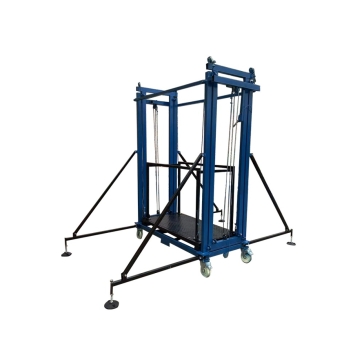

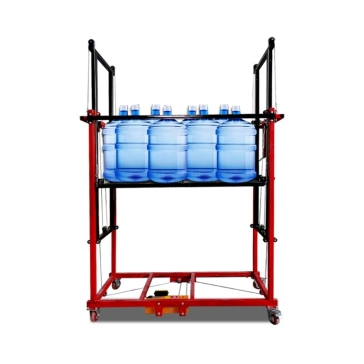

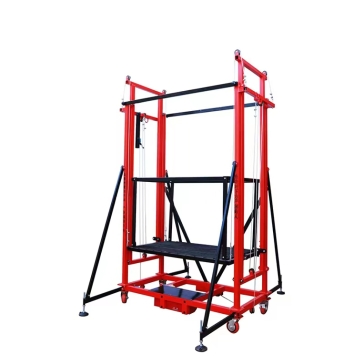

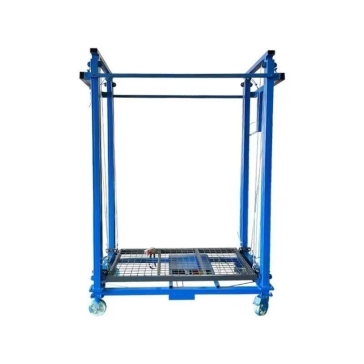

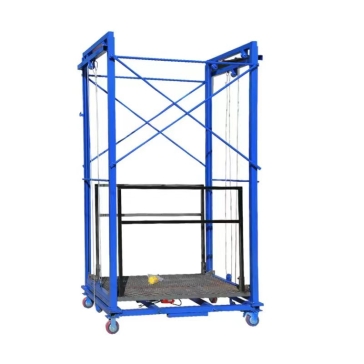

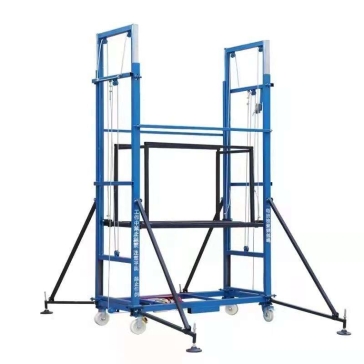

300 kg – 500 kg Electric Scaffolding Lift
Electric scaffolding lift platforms are mainly used for building construction, special operations and indoor and outdoor interior cleaning. They are easy to move, easy to install and dismantle, and flexible in application. With remote control, they are safe and reliable, reducing the up and down work of workers during construction. The frequency of use is high, which reduces physical exertion and lowers the risk factor; the efficiency of one electric scaffold is equivalent to 5-8 ordinary scaffolds.
Features
- Professional Weight-Bearing galvanized steel wire rope
- International standard steel
- Wireless remote control lifting and lowering, simple and fast operation
- 360 ° rotation without dead angle is convenient and convenient
- Up and down travel limit protection
- Guardrail + legs for extra safety
Technical Data
| Platform Height (m) | Max. Lifting Capacity (kg) | Platform size (m) | Dimension (m) | Overall Height (m) | Outrigger & Guardrail | |
|---|---|---|---|---|---|---|
| Material | ||||||
| 2 | 300/500 | 1.3*0.68 | 1.5*0.7 | 2.7 | - | 5*5cm steel pipe, 2cm thickness |
| 2.5 | 300/500 | 1.3*0.68 | 1.5*0.7 | 3.2 | - | 5*5cm steel pipe, 2cm thickness |
| 3 | 300/500 | 1.3*0.68 | 1.5*0.7 | 3.7 | Yes | 5*5cm steel pipe, 2cm thickness |
| 3.5 | 300/500 | 1.3*0.68 | 1.5*0.7 | 4.2 | Yes | 5*5cm steel pipe, 2cm thickness |
| 4 | 300/500 | 1.4*0.78 | 1.6*0.8 | 4.7 | Yes | 5*5cm steel pipe, 2cm thickness |
| 4.5 | 300/500 | 1.4*0.78 | 1.6*0.8 | 5.2 | Yes | 5*5cm steel pipe, 2cm thickness |
| 5 | 300/500 | 1.4*0.78 | 1.6*0.8 | 5.7 | Yes | 5*5cm steel pipe, 2cm thickness |
| 5.5 | 300/500 | 1.4*0.78 | 1.6*0.8 | 6.2 | Yes | 5*5cm steel pipe, 2cm thickness |
| 6 | 500 | 1.6*0.98 | 1.8*1 | 6.7 | Yes | 6*6cm steel pipe, 2cm thickness |
| 7 | 500 | 1.6*0.98 | 1.8*1 | 7.7 | Yes | 6*6cm steel pipe, 2cm thickness |
| 8 | 500 | 1.6*0.98 | 1.8*1 | 8.7 | Yes | 6*6cm steel pipe, 2cm thickness |
