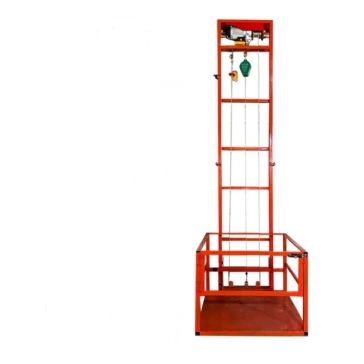

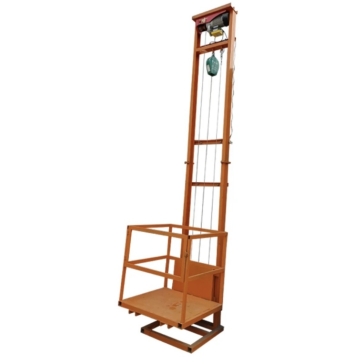

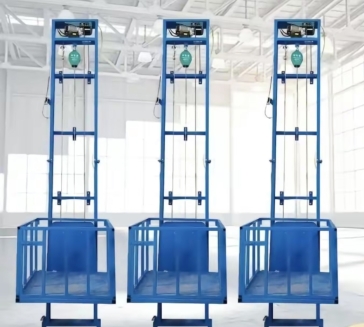

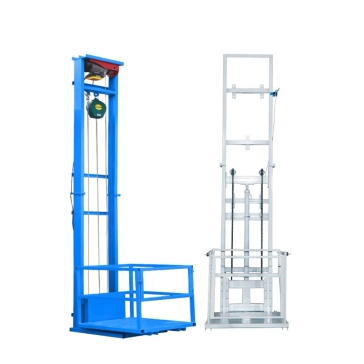

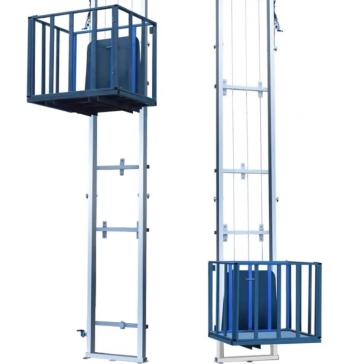

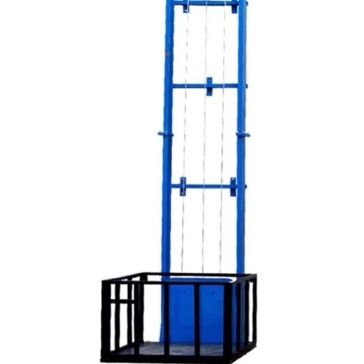

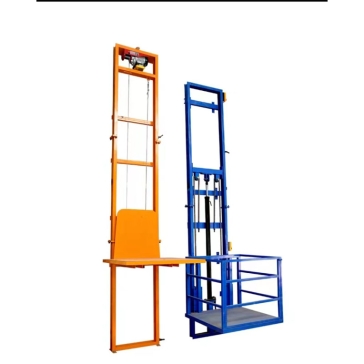

Electric Cargo Lift

Model: CL

Structure: Steel pipe

Capacity (tons): 300-500kg

Hoisting height (m): 2-15m

Certificate: CE

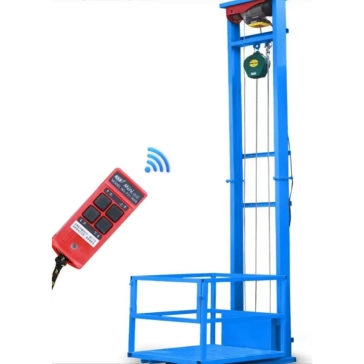

Control: Remote control

Production cycle: 3~5 work days

Warranty: 12 months

Additional information

Supplity – 360 Units in Stock Available for Sale Every Month
Standard – Meeting CE Standards in Terms of Quality & Safety
Warranty – Three-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

1-2 Days Handling and 7-30 Days Shipping
30-Day Money Back Guarantee for Your Purchase
Free Lifetime Technical Support for End-Users & Dealers
Online (PayPal, Trade Assurance) / Offline (T/T, Debit & Credit Cards)

Electric Cargo Lift

Electric Cargo Lift

Electric Cargo Lift

Electric Cargo Lift

Electric Cargo Lift

Electric Cargo Lift

Electric Cargo Lift

Electric Cargo Lift

Electric Cargo Lift

Details

Authorization letter- STONIMAGE

Click here to the product description

Technical Notes

Motor size: PA800/PA1000
Standard voltage: 220V
Control: Remote control
Wire Rope diameter: 6mm
Safety protection: Upper and lower limiter, include falling protector
Packing: Wooden case (especially for export)

Technical Data

Platform Height (m)	Max. Lifting Capacity (kg)	Platform size (m)	Dimension (m)	Dead weight (kg)
Material
2	500	1.0*0.8	10.83.4	200	4*6 steel pipe, 2mm thickness
2.5	500	1.0*0.8	10.83.9	225	4*6 steel pipe, 2mm thickness
3	500	1.0*0.8	10.84.4	250	4*6 steel pipe, 2mm thickness
3.5	500	1.0*0.8	10.84.9	275	4*6 steel pipe, 2mm thickness
4	500	1.0*0.8	10.85.4	300	4*6 steel pipe, 2mm thickness
4.5	500	1.0*0.8	10.85.9	325	4*6 steel pipe, 2mm thickness
5	500	1.0*0.8	10.86.4	350	4*6 steel pipe, 2mm thickness
6	500	1.0*0.8	10.87.4	400	4*6 steel pipe, 2mm thickness
7	400	1.0*0.8	10.88.4	450	4*6 steel pipe, 2mm thickness
8	400	1.0*0.8	10.89.4	500	4*6 steel pipe, 2mm thickness
9	400	1.0*0.8	10.810.4	550	4*6 steel pipe, 2mm thickness
10	300	1.0*0.8	10.811.5	600	4*6 steel pipe, 2mm thickness
15	300	1.0*0.8	10.816.5	800	4*6 steel pipe, 2mm thickness
