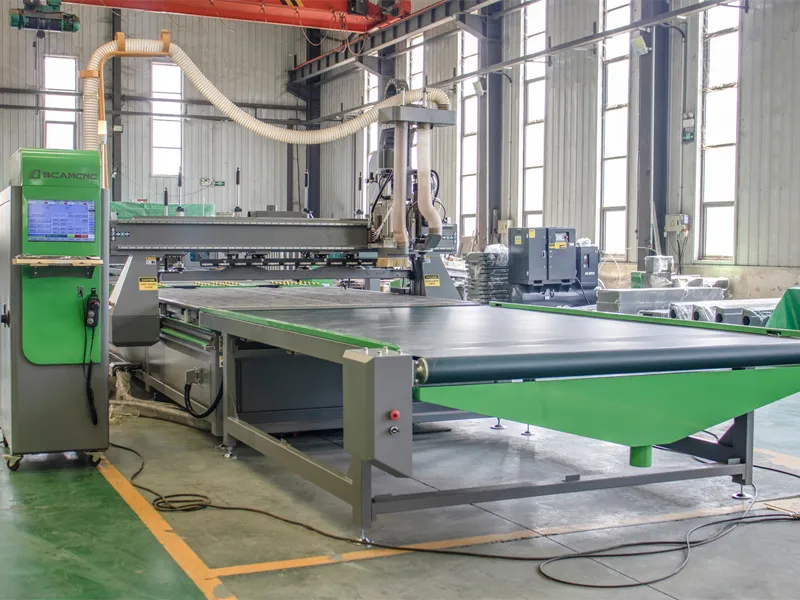

BCM-1325EA Automatic Industrial CNC Router for Woodworking Advantages
1.Advanced Control & Precision – Equipped with Taiwan Syntec 60CB system and high-precision servo motors, this CNC Router for Woodworking delivers stable, intelligent, and accurate machining.
2.High Efficiency Tool Changing – 12-position automatic linear tool changer with quick tool cone holders ensures fast, reliable tool swaps.
3.Fully Automated Material Handling – Automatic loading and unloading system with vacuum suction cups and panel alignment reduces labor and increases productivity for CNC Router for Woodworking applications.
4.Durable & Safe Design – Heavy-duty structure with CE-standard active safety protection and solid-state limit switches for long-term reliability.
5.Powerful Spindle & Easy Maintenance – 9.0–11KW HQD spindle with Fulling VFD drive, supported by auto-lubrication and dual dust collection, guarantees consistent performance for CNC Router for Woodworking tasks.
Automatic CNC Wood Router with Automatic Tool Changer Main Configuration
- Working area:1300*2500*200mm
- CE standard
- Panel Loading and Unloading system (Automatic)
- China HQD 9.0KW (12HP) Electro spindle with12-position Automatic Tool Changer (ISO30)
- Heavy duty body
- Active safety system
- Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission
- 25mm Heavy-duty Hiwin HGS series linear bearing
- Vacuum table+7.5kw air pump
- Taiwan Syntec 60CB
- Taiwan Syntec servo motor and drivers system and reducer
- Fulling brand VFD-B variable frequency drive
- 12 Position Automatic Linear Tool Changer (Following granty)
- Tool Cone Holder-for east bit changing
- Solid State limit switches
- Optional Vacuum pump:5.5kw,7.5KW,11KW
- Optional CAM Software:BCAMPro/VCarve/VCarve Pro/ArtCAM/UcanCAM,etc.
4×8 CNC Router for Woodworking with Tool Changer Automatic Specifications
| Parameters | Standard Specifications | |
|---|---|---|
| X,Y,Z Working Area | 1300*2500*200mm|4*8ft | |
| Optional Working Area | 1300*1300*200mm|4*4ft | |
| 1500*3000*200mm|5*10ft | ||
| 2000*3000*200mm|6*10ft | ||
| 2000*4000*200mm|6*13ft | ||
| 2000*5000*200mm|6*16ft | ||
| 2000*6000*200mm|6*19ft | ||
| Spindle Power | China HQD 9.0KW air cooling spindle | |
| X,Y,Z Traveling Positioning Accuracy | ±0.02/2000mm | |
| Table Surface | Vacuum table | |
| X,Y,Z Rail and Transmission | XYaxis gear transmission, Z axis TaiwanTBI Ball Screw | |
| Max. Rapid Travel Rate | 80m/min | |
| Max. Working Speed | 70m/min | |
| Loading and Unloading Speed | 15m/min | |
| Spindle Speed | 24000r/min | |
| Drive Motors | Taiwan syntec servo motor and drivers system | |
| Working Voltage | AC110V/220V/240V/380V/400V, 1P/3P, 50HZ/60HZ | |
| Command Language | G Code | |
| Operating System | Taiwan Syntec 60CB control system | |
| Interface | USB,NETWORK | |
| Software Compatibility | Option:Alpacam,Carbinets Version , BCAMNESTTING,solidworks,etc. | |
| Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
