Affordable CNC Router Advantages for Wood, MDF, and Sign Industry Applications

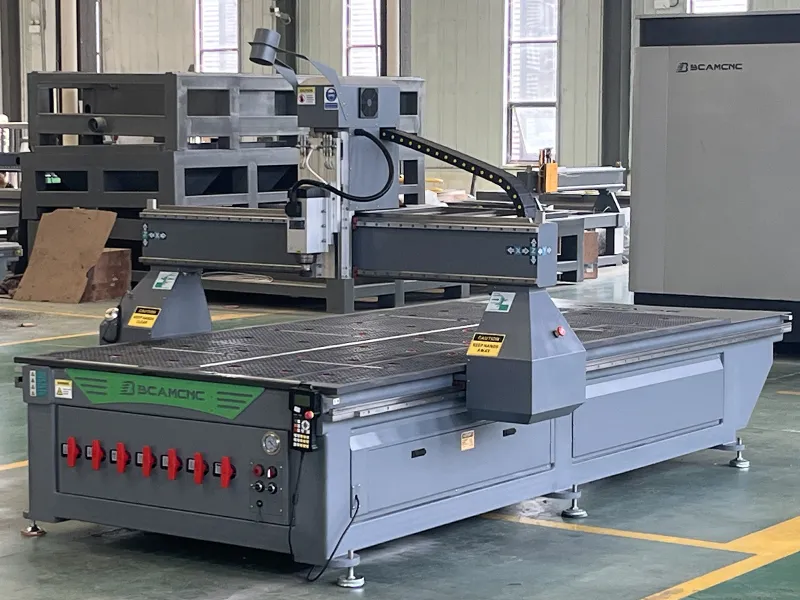

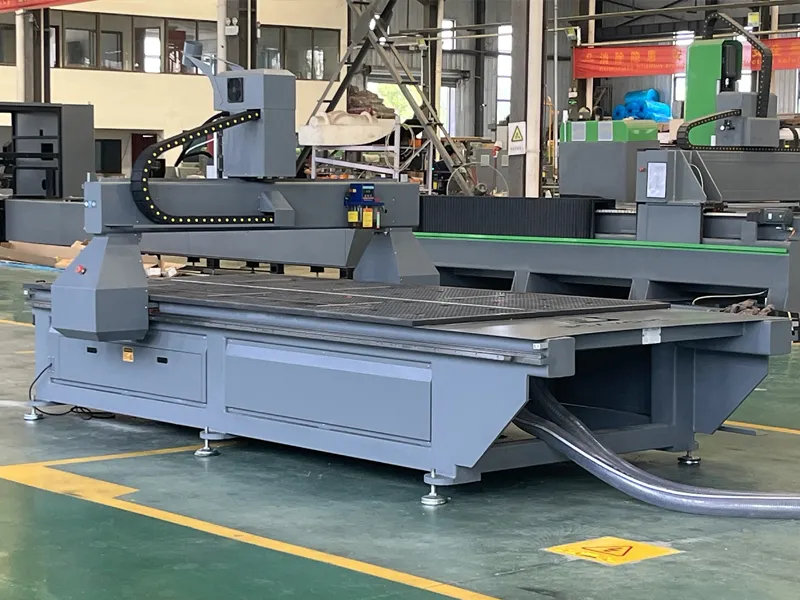

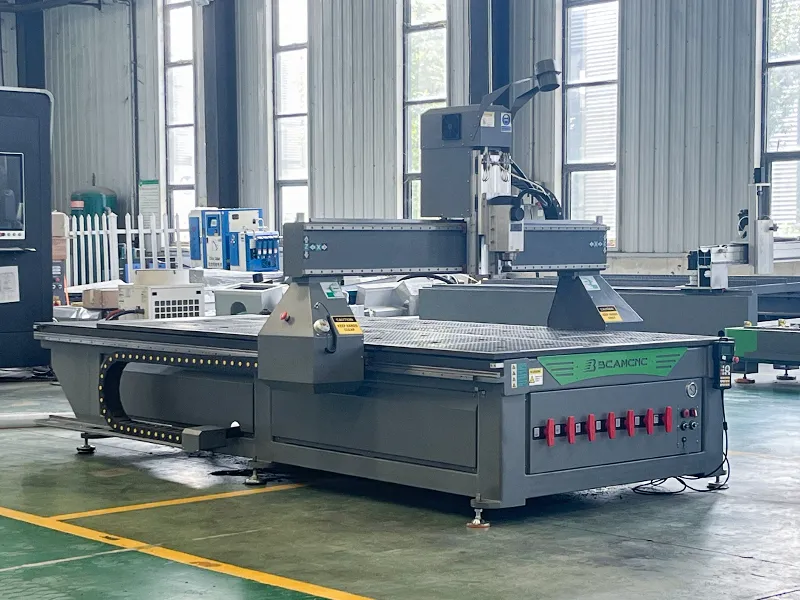

BCM 1325SA is a 4×8 ft large-format CNC router from the SA Series – a professional yet affordable 3 axis CNC wood router, designed for woodworking shops, cabinet manufacturers, and industrial workshops. This budget-friendly CNC router delivers high precision and durability for wood machining, acrylic cutting, aluminum cutting, signmaking, and furniture production.
1.Robust Construction
• Monolithic Steel Frame: A single-piece welded steel chassis ensures stability for heavy-duty applications such as cabinet manufacturing, furniture cnc router projects, and aluminum cutting with a 3 axis cnc router machine.
• Aerospace-Grade Aluminum Gantry: Precision-machined aluminum components reduce vibration and enhance cutting accuracy, even at high speeds.
• Vibration-Dampening Design: Cast gantry supports minimize resonance, ensuring smooth operation and superior surface finishes.
2.Precision Motion System
• Helical Rack Drive Technology: Each axis features precision-engineered helical racks for controlled, backlash-free motion, achieving micron-level accuracy in inlays, 2D cutting, and PCB routing.
• High-Power Spindle Options: Choose from 4 HP to 10 HP spindle configurations to handle materials ranging from softwood to high-density plastics and composites.
3.Versatile Tooling System
• Dual-Mode Tooling: Standard oscillating/non-oscillating spindle systems adapt to intricate detailing (e.g., signage) or aggressive material removal (e.g., foam, metal).
• Optional Secondary Knife System: Expand capacity for simultaneous multi-tool operations, ideal for complex projects like cabinetry or industrial prototyping.
4.Material Mastery
• BCM1325SA processes a wide range of materials:
Wood CNC: Inlays, plywood cutting, MDF routing, and furniture making.
Plastics & Acrylic CNC: Cutting, plexiglass cutting, and acrylic signmaking.
Aluminum CNC Router: Precise cutting and milling of aluminum sheets and plates.
• Engineered for reliability in 24/7 production environments.
• Global Support & Scalability
5.Global Support & Scalability
• Worldwide Service Network: Access 24/7 technical support and localized service hubs across 50+ countries.
• Future-Proof Design: Modular architecture allows easy upgrades for evolving business needs.
6.Ideal Applications
• Education: Entry-level 3 axis CNC routers for beginners and students – ideal for CNC training, woodworking courses, and small-scale router projects.
• Workshops & SMEs: Affordable large-format wood CNC routers for cabinet making, furniture production, signage, and versatile woodworking applications.
• Industry: Professional 3 axis CNC router with optional tool changer, engineered for aluminum cutting, acrylic machining, and high-volume industrial CNC furniture production.
WLG 1325SA Series Affordable CNC Router Machine Woodworking Router Specifications
| Parameters | Standard Specifications WLG1325SA CNC Router |
|---|---|
| X,Y,Z Working Area | 1300*2500*200mm|4′*8′ |
| Optional Working Area | 1300*1300*200mm|4′*4 |
| Optional Working Area | 2000*3000*200mm|6′*10′ |
| Optional Working Are | 2000*4000*200mm|6′*13′ |
| Optional Working Area | 2000*6000*200mm|6′*20′ |
| Spindle Power | 3.5kw air coolingspindle |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/2000mm |
| Table Surface | Vacuum table+T-solts |
| X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis Made in China Ball Screw |
| Max. Rapid Travel Rate | 40m/min |
| Max. Working Speed | 30m/min |
| Cutting thickness | According materials |
| Spindle Speed | 6000-24000RPM |
| Drive Motors | 4 sets High Torque stepper motor and drivers |
| Working Voltage | AC110V/220V/240V/380V/400V, 1P/3P, 50HZ/60HZ |
| Command Language | G Code |
| Operating System | Richauto A11 DSP control system |
| Interface | USB |
| Software Compatibility | Option:VCarve/VCarve Pro/UcanCAM/ArtCAM,etc. |
| Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
