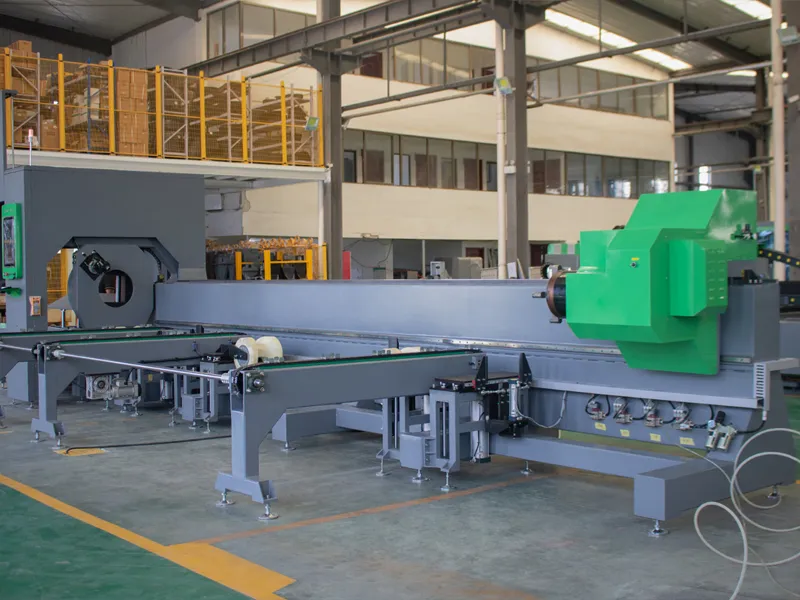

The Automatic Loading Fiber Laser Tube Cutting Machine represents the next generation of intelligent metal processing equipment. Designed for precision, speed, and efficiency, this laser tube cutting machine combines advanced automation with powerful fiber laser technology to deliver superior performance in modern manufacturing. Whether for small workshops or large-scale industrial applications, it ensures consistent cutting quality, reduced labor costs, and significantly higher productivity.
Unlike traditional cutting solutions, this fiber laser tube cutting machine integrates an intelligent automatic loading system, allowing operators to feed and process tubes continuously without interruption. This not only reduces manual handling but also optimizes workflow, making it the ideal choice for manufacturers who value efficiency and accuracy.
Engineered with a heavy-duty welded frame, aviation-grade aluminum beam, and advanced CNC control system, the metal tube laser cutting machine delivers stability and long service life while maintaining precise cutting results across a wide range of materials. From stainless steel and carbon steel to aluminum, brass, and copper, it provides smooth edges and high-accuracy cuts even on complex profiles.
The rise of tube laser cutting has revolutionized industries such as automotive, fitness equipment, furniture, construction, and metal fabrication. As demand for lightweight structures and customized designs grows, the automatic loading laser tube cutting machine offers manufacturers the flexibility to process round tubes, square tubes, rectangular pipes, and even special-shaped profiles with ease.
With advanced features such as an autofocus laser head, servo-driven motion system, intelligent nesting software, and efficient cooling technology, this fiber laser tube cutting machine is built for high-volume production and long-term reliability. For businesses looking to upgrade from manual or semi-automatic machines, investing in a laser tube cutting machine ensures not only higher throughput but also a competitive edge in today’s fast-paced market.
Automatic Loading Laser Tube Cutting Machine Main Configuration
- Working area: Diameter 220mm, length 6000mm
- CE standard
- Control system:Au3tech/Raytools/CYPCUT
- YYC/TM helical gear 2M, Z-axis 1610 screw
- Fiber laser generator:RECI /MAX /Raycus/IPG
- Welded frame bed
- Taiwan Delta servo motor and drivers
- Location system:Red dot indicator
- Industrial chiller 3000W Hali/Teyu
- 25 square guide rail
- Autofocus head：Au3tech/Raytools/CYPCUT
- Heavy duty body frame thickness
- Janpan Shimpo gearbox
- Automatic lubrication system
- Schneider Electric control system
- Aviation aluminum beam
- Japanese SMC proportional valve
Automatic Loading Laser Tube Cutting Machine Specifications
| Parameters | Standard Specifications WLG60220T |
|---|---|
| X,Y,Z Working Area | Diameter 220mm, length 6000mm |
| Laser Power | 1500W to 60000W |
| X,Y,Z Traveling Positioning Accuracy | ±0.02/2000mm |
| Max cutting speed | 35m/min(depending on material and thickness) |
| Water cooling system | Constant temperature water chi ler |
| Max. Rapid Travel Rate | 90m/min |
