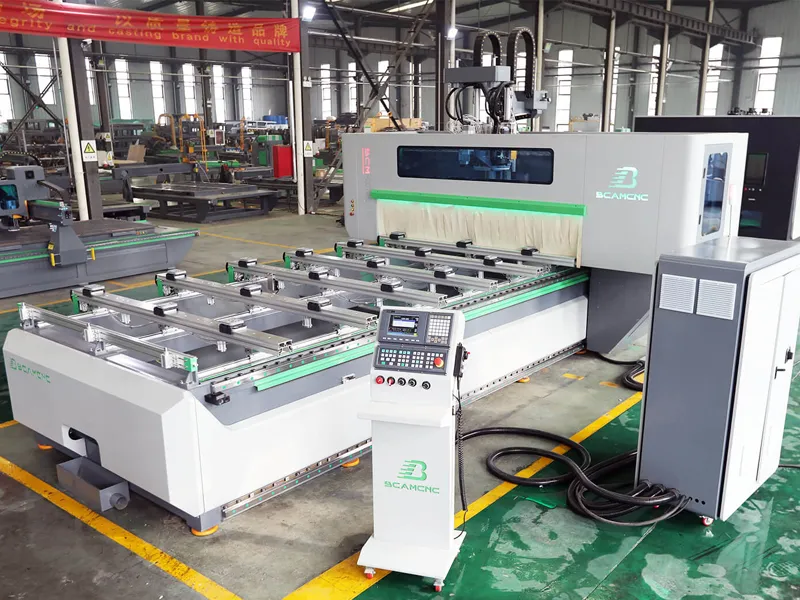

BCM2140F 3 Axis CNC Wood Router Machine Advantage
1. Versatile Multi-Function Machining
All-in-One CNC Wood Router Machine Processing: Capable of drilling, cutting, side milling, edge machining, and more.
Core Functions: High-precision CNC wood router machine cutting and routing for diverse woodworking and panel materials.
2. High Efficiency & Speed
Optimized ATC CNC wood router machine for rapid production, reducing processing time while maintaining accuracy.
Ideal for high-volume manufacturing tasks using CNC wood router machines in furniture production, kitchen cabinets, wooden doors, and panel processing.
3. Wide Application Range
Materials: Solid wood, MDF, plywood, aluminum composite panels, and plastics – all processed efficiently with a CNC Wood Router Machine.
Products: Cabinet doors, panel furniture, wooden doors, windows, tables, and chairs. Suitable for woodworking shops and furniture manufacturers using CNC wood router machines.

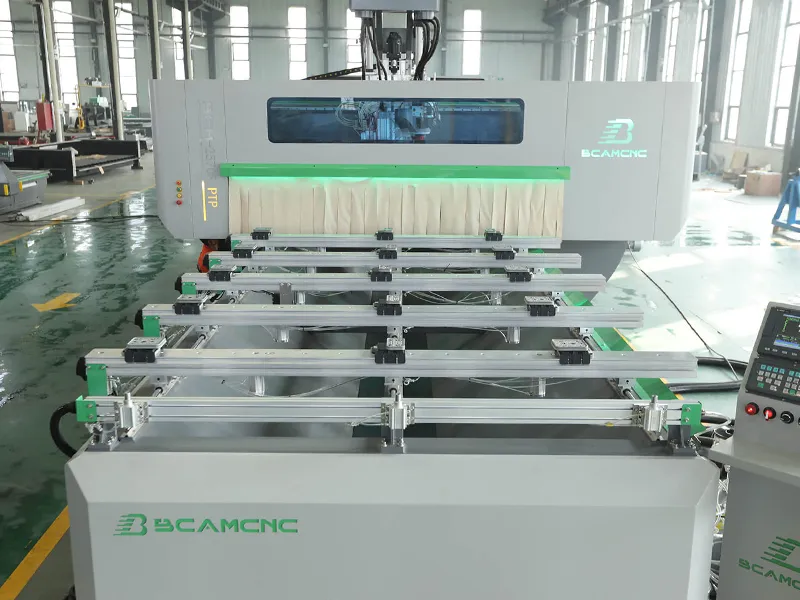

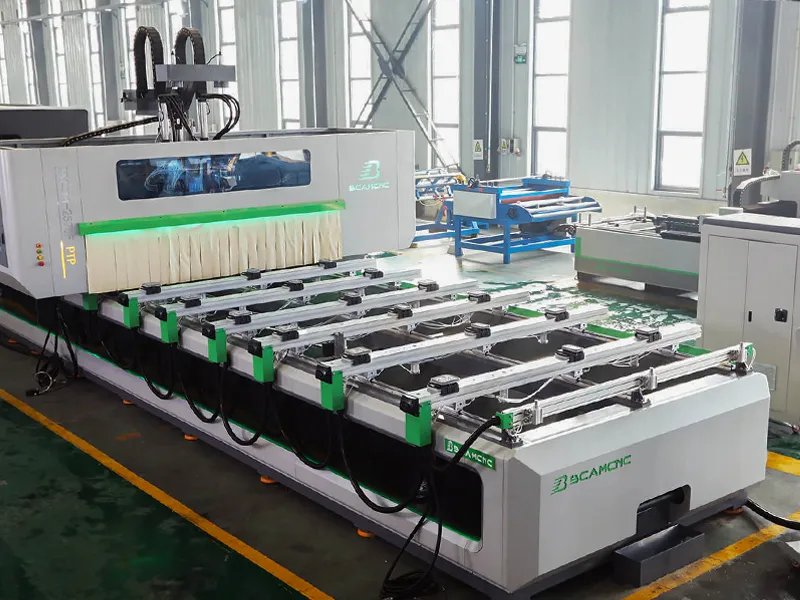

4. Advanced Vacuum Worktable Design
Stability & Flexibility: Aluminum alloy bars with suction cups ensure secure clamping for various workpiece sizes.
Easy Operation: Simplified loading/unloading, adaptable to different CNC machining configurations.
5. Space-Saving & Cost-Effective
Single-Arm CNC Wood Router Machine Design: Compact yet powerful, suitable for small to medium workshops.
Multi-Task Integration: Cropping, routing, drilling, and sawing in one CNC machine, reducing equipment and labor costs.
6. User-Friendly & Time-Saving
Intuitive CNC Wood Router Machine controls streamline workflow, minimizing manual intervention.
Maximizes output with minimal downtime, making it one of the best CNC wood routers for cabinet making and furniture production.
BCM2140F 3 Axis CNC Wood Router Machine Main Configuration
- CE standard
- Italy HSD 9.0KW/ATC/ISO30 high frequency air cooling spindle
- Taiwan Syntec control system 20MA
- Taiwan TBI ball screw
- Taiwan TBI Linear 30mm rails
- 7.5KW oil-less pump and vacuum table
- Italy HITECO drilling bank 9V+6H+1S
- X,Y axis Germany helical gear and rack transmission
- German schmalz PTP table
- Taiwan Delta inverter
- 11KW Japan Omron limited switch
- Japan YASKAWA 850W servo motor and driver+Japan shimpo reducer
- 8 pcs ISO30 tool holders, air cylinder
- France schneider electrical components
- Heavy duty frame
- Hydualic lifter and belt conveyor
- Automatic Lubrication system
- 5.5kw dust collector
WLG-2140F Woodworking 3 Axis CNC Wood Router Machine Specifications
| Parameters | Standard Specifications WLG-2140F |
|---|---|
| X,Y,Z Working Area | 2100*4000*200mm|6′*13′ |
| Optional Working Area | 1300*2500*200mm|4′*8′ |
| 1500*3000*200mm|5′*10′ | |
| 2000*3000*200mm|6′*10′ | |
| 1300*3000*200mm|4′*10 | |
| 2000*6000*200mm|6′*20′ | |
| Spindle Power | 9.0kw Italy HSD air cooling spindle |
| X,Y,Z Traveling Positioning Accuracy | ±0.05mm |
| Repeat positioning accuracy | ±0.03mm/1000mm |
| Table Surface | Vacuum table + German schmalz PTP table |
| X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
| Max. Rapid Travel Rate | 30m/min |
| Max. Working Speed | 12m/min (Calculated based on the material 8 meters of foam) |
| Cutting thickness | According materials |
| Spindle Speed | 6000-24000RPM |
| Drive Motors | Taiwan Syntec ServoDriveSystem |
| Working Voltage | AC110V/220V/240V/380V/400V, 1P/3P, 50HZ/60HZ |
| Command Language | G Code |
| Operating System | TaiwanSynte control system |
| Interface | USB |
| Software Compatibility | Option:VCarve/VCarve Pro/ArtCAM/UCANCAM,etc |
| Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
